If it is planned to ASM filter driver (ASMFD) for managing disks used by ASM then uninstall ASMLib if it is already installed.
Unlike 12cR1, it is possible to specify a separate disk group for GIMR at the installation time. Oracle documentation says "You cannot migrate the GIMR from one disk group to another later". 12cR1 also mentioned the same but there were ways to move GIMR to different disk group after the installation. It has been not verified whether the same techniques could be used for 12.2 as well.
1. Shown below is the OS and kernel versions used for this RAC installation. These are the minimum versions supported for 12.2 clusterware installation. If the OS/Kernel versions are lower than this version then OS need to be upgraded before installation could proceed.
uname -r 2.6.32-358.el6.x86_64 $ cat /etc/redhat-release Red Hat Enterprise Linux Server release 6.4 (Santiago)2. Create the user groups and users similar to previous 12.1 installation. As said in the previous post 12.2 introduce a new user group for RAC management. Following from install guide "You must designate a group as the OSRACDBA group during database installation. Members of this group are granted the SYSRAC privileges to perform day–to–day administration of Oracle databases on an Oracle RAC cluster".
groupadd dba groupadd oinstall groupadd oper groupadd asmoper groupadd asmdba groupadd asmadmin groupadd backupdba groupadd dgdba groupadd kmdba groupadd racdba useradd -g oinstall -G dba,oper,asmdba,backupdba,dgdba,kmdba,racdba oracle useradd -g oinstall -G asmadmin,asmdba,asmoper,dba grid3. The other pre-requisite steps are similar to 12.1 RAC installation. Follow oracle installation guide for detail instructions. As said earlier the grid infrastructure software is unzip directly into the install location.
mkdir -p /opt/app/12.2.0/grid cp ~/linuxx64_12201_grid_home.zip /opt/app/12.2.0/grid cd /opt/app/12.2.0/grid unzip linuxx64_12201_grid_home.zip4. 12.2 gives the option of using ASM filter driver (ASMFD) for managing disks used by ASM. However installation could be done without the use of AFD as well. Using udev rules for the ASM disks. For this setup UDEV rules have been setup as below. The disks used for OCR were of 3GB (OCR disk group to be of normal redundancy) and GIMR disk group is 40GB (with external redundancy). Minimum storage requirement for standaloen cluster could be found here.
KERNEL=="sd*1", BUS=="scsi", PROGRAM=="/sbin/scsi_id -g -u -d /dev/$parent",RESULT=="1ATA_VBOX_HARDDISK_VB34650f33-5ecdc029",OWNER="grid",GROUP="asmadmin",MODE="0660",NAME="oracleasm/data1" KERNEL=="sd*1", BUS=="scsi", PROGRAM=="/sbin/scsi_id -g -u -d /dev/$parent",RESULT=="1ATA_VBOX_HARDDISK_VBdb057b08-1733da4b",OWNER="grid",GROUP="asmadmin",MODE="0660",NAME="oracleasm/fra1" KERNEL=="sd*1", BUS=="scsi", PROGRAM=="/sbin/scsi_id -g -u -d /dev/$parent",RESULT=="1ATA_VBOX_HARDDISK_VB1a72679c-ab23e15f",OWNER="grid",GROUP="asmadmin",MODE="0660",NAME="oracleasm/ocr1" KERNEL=="sd*1", BUS=="scsi", PROGRAM=="/sbin/scsi_id -g -u -d /dev/$parent",RESULT=="1ATA_VBOX_HARDDISK_VB8f43e75c-3e0bec6d",OWNER="grid",GROUP="asmadmin",MODE="0660",NAME="oracleasm/ocr2" KERNEL=="sd*1", BUS=="scsi", PROGRAM=="/sbin/scsi_id -g -u -d /dev/$parent",RESULT=="1ATA_VBOX_HARDDISK_VB1a5c8787-e082e7a7",OWNER="grid",GROUP="asmadmin",MODE="0660",NAME="oracleasm/ocr3" KERNEL=="sd*1", BUS=="scsi", PROGRAM=="/sbin/scsi_id -g -u -d /dev/$parent",RESULT=="1ATA_VBOX_HARDDISK_VBf8475ab7-d401ec8b",OWNER="grid",GROUP="asmadmin",MODE="0660",NAME="oracleasm/gimr"
5. The main body of the post shows the installation without using AFD. The end of the post will have additional steps needed to be done before clusteware is install if AFD is desired. 12.2 install documentation states that gcc and gcc+ are not required on OEL and RHEL for GI installations. However the runcluvfy does look for these two packages (see output below). In this case the pre-check was unsuccessful due to lower SWAP size, which is ignorable (unless for production).
./runcluvfy.sh stage -pre crsinst -n rhel6m1,rhel6m2 -r 12.2 -osdba asmdba -osoper asmoper -asm -asmgrp asmadmin -presence local -asmdev /dev/oracleasm/data1,/dev/oracleasm/fra1,/dev/oracleasm/ocr1,/dev/oracleasm/ocr2,/dev/oracleasm/ocr3,/dev/oracleasm/gimr -crshome /opt/app/12.2.0/grid -fixup -verbose
Verifying Physical Memory ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 7.6865GB (8059836.0KB) 8GB (8388608.0KB) passed
rhel6m1 7.6865GB (8059836.0KB) 8GB (8388608.0KB) passed
Verifying Physical Memory ...PASSED
Verifying Available Physical Memory ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 7.5462GB (7912808.0KB) 50MB (51200.0KB) passed
rhel6m1 7.2342GB (7585564.0KB) 50MB (51200.0KB) passed
Verifying Available Physical Memory ...PASSED
Verifying Swap Size ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 4GB (4194296.0KB) 7.6865GB (8059836.0KB) failed
rhel6m1 4GB (4194296.0KB) 7.6865GB (8059836.0KB) failed
Verifying Swap Size ...FAILED (PRVF-7573)
Verifying Free Space: rhel6m2:/usr,rhel6m2:/var,rhel6m2:/etc,rhel6m2:/opt/app/12.2.0/grid,rhel6m2:/sbin,rhel6m2:/tmp ...
Path Node Name Mount point Available Required Status
---------------- ------------ ------------ ------------ ------------ ------------
/usr rhel6m2 / 31.793GB 25MB passed
/var rhel6m2 / 31.793GB 5MB passed
/etc rhel6m2 / 31.793GB 25MB passed
/opt/app/12.2.0/grid rhel6m2 / 31.793GB 6.9GB passed
/sbin rhel6m2 / 31.793GB 10MB passed
/tmp rhel6m2 / 31.793GB 1GB passed
Verifying Free Space: rhel6m2:/usr,rhel6m2:/var,rhel6m2:/etc,rhel6m2:/opt/app/12.2.0/grid,rhel6m2:/sbin,rhel6m2:/tmp ...PASSED
Verifying Free Space: rhel6m1:/usr,rhel6m1:/var,rhel6m1:/etc,rhel6m1:/opt/app/12.2.0/grid,rhel6m1:/sbin,rhel6m1:/tmp ...
Path Node Name Mount point Available Required Status
---------------- ------------ ------------ ------------ ------------ ------------
/usr rhel6m1 / 21.9208GB 25MB passed
/var rhel6m1 / 21.9208GB 5MB passed
/etc rhel6m1 / 21.9208GB 25MB passed
/opt/app/12.2.0/grid rhel6m1 / 21.9208GB 6.9GB passed
/sbin rhel6m1 / 21.9208GB 10MB passed
/tmp rhel6m1 / 21.9208GB 1GB passed
Verifying Free Space: rhel6m1:/usr,rhel6m1:/var,rhel6m1:/etc,rhel6m1:/opt/app/12.2.0/grid,rhel6m1:/sbin,rhel6m1:/tmp ...PASSED
Verifying User Existence: grid ...
Node Name Status Comment
------------ ------------------------ ------------------------
rhel6m2 passed exists(502)
rhel6m1 passed exists(502)
Verifying Users With Same UID: 502 ...PASSED
Verifying User Existence: grid ...PASSED
Verifying Group Existence: asmadmin ...
Node Name Status Comment
------------ ------------------------ ------------------------
rhel6m2 passed exists
rhel6m1 passed exists
Verifying Group Existence: asmadmin ...PASSED
Verifying Group Existence: asmoper ...
Node Name Status Comment
------------ ------------------------ ------------------------
rhel6m2 passed exists
rhel6m1 passed exists
Verifying Group Existence: asmoper ...PASSED
Verifying Group Existence: asmdba ...
Node Name Status Comment
------------ ------------------------ ------------------------
rhel6m2 passed exists
rhel6m1 passed exists
Verifying Group Existence: asmdba ...PASSED
Verifying Group Existence: oinstall ...
Node Name Status Comment
------------ ------------------------ ------------------------
rhel6m2 passed exists
rhel6m1 passed exists
Verifying Group Existence: oinstall ...PASSED
Verifying Group Membership: asmdba ...
Node Name User Exists Group Exists User in Group Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 yes yes yes passed
rhel6m1 yes yes yes passed
Verifying Group Membership: asmdba ...PASSED
Verifying Group Membership: asmadmin ...
Node Name User Exists Group Exists User in Group Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 yes yes yes passed
rhel6m1 yes yes yes passed
Verifying Group Membership: asmadmin ...PASSED
Verifying Group Membership: oinstall(Primary) ...
Node Name User Exists Group Exists User in Group Primary Status
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m2 yes yes yes yes passed
rhel6m1 yes yes yes yes passed
Verifying Group Membership: oinstall(Primary) ...PASSED
Verifying Group Membership: asmoper ...
Node Name User Exists Group Exists User in Group Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 yes yes yes passed
rhel6m1 yes yes yes passed
Verifying Group Membership: asmoper ...PASSED
Verifying Run Level ...
Node Name run level Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 3 3,5 passed
rhel6m1 3 3,5 passed
Verifying Run Level ...PASSED
Verifying Hard Limit: maximum open file descriptors ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 hard 65536 65536 passed
rhel6m1 hard 65536 65536 passed
Verifying Hard Limit: maximum open file descriptors ...PASSED
Verifying Soft Limit: maximum open file descriptors ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 soft 1024 1024 passed
rhel6m1 soft 1024 1024 passed
Verifying Soft Limit: maximum open file descriptors ...PASSED
Verifying Hard Limit: maximum user processes ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 hard 16384 16384 passed
rhel6m1 hard 16384 16384 passed
Verifying Hard Limit: maximum user processes ...PASSED
Verifying Soft Limit: maximum user processes ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 soft 2047 2047 passed
rhel6m1 soft 2047 2047 passed
Verifying Soft Limit: maximum user processes ...PASSED
Verifying Soft Limit: maximum stack size ...
Node Name Type Available Required Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 soft 10240 10240 passed
rhel6m1 soft 10240 10240 passed
Verifying Soft Limit: maximum stack size ...PASSED
Verifying Architecture ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 x86_64 x86_64 passed
rhel6m1 x86_64 x86_64 passed
Verifying Architecture ...PASSED
Verifying OS Kernel Version ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 2.6.32-358.el6.x86_64 2.6.32 passed
rhel6m1 2.6.32-358.el6.x86_64 2.6.32 passed
Verifying OS Kernel Version ...PASSED
Verifying OS Kernel Parameter: semmsl ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 3010 3010 250 passed
rhel6m2 3010 3010 250 passed
Verifying OS Kernel Parameter: semmsl ...PASSED
Verifying OS Kernel Parameter: semmns ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 385280 385280 32000 passed
rhel6m2 385280 385280 32000 passed
Verifying OS Kernel Parameter: semmns ...PASSED
Verifying OS Kernel Parameter: semopm ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 3010 3010 100 passed
rhel6m2 3010 3010 100 passed
Verifying OS Kernel Parameter: semopm ...PASSED
Verifying OS Kernel Parameter: semmni ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 128 128 128 passed
rhel6m2 128 128 128 passed
Verifying OS Kernel Parameter: semmni ...PASSED
Verifying OS Kernel Parameter: shmmax ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 68719476736 68719476736 4126636032 passed
rhel6m2 68719476736 68719476736 4126636032 passed
Verifying OS Kernel Parameter: shmmax ...PASSED
Verifying OS Kernel Parameter: shmmni ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 4096 4096 4096 passed
rhel6m2 4096 4096 4096 passed
Verifying OS Kernel Parameter: shmmni ...PASSED
Verifying OS Kernel Parameter: shmall ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 4294967296 4294967296 805983 passed
rhel6m2 4294967296 4294967296 805983 passed
Verifying OS Kernel Parameter: shmall ...PASSED
Verifying OS Kernel Parameter: file-max ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 6815744 6815744 6815744 passed
rhel6m2 6815744 6815744 6815744 passed
Verifying OS Kernel Parameter: file-max ...PASSED
Verifying OS Kernel Parameter: ip_local_port_range ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 between 9000 & 65500 between 9000 & 65500 between 9000 & 65535 passed
rhel6m2 between 9000 & 65500 between 9000 & 65500 between 9000 & 65535 passed
Verifying OS Kernel Parameter: ip_local_port_range ...PASSED
Verifying OS Kernel Parameter: rmem_default ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 4194304 4194304 262144 passed
rhel6m2 4194304 4194304 262144 passed
Verifying OS Kernel Parameter: rmem_default ...PASSED
Verifying OS Kernel Parameter: rmem_max ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 4194304 4194304 4194304 passed
rhel6m2 4194304 4194304 4194304 passed
Verifying OS Kernel Parameter: rmem_max ...PASSED
Verifying OS Kernel Parameter: wmem_default ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 1048576 1048576 262144 passed
rhel6m2 1048576 1048576 262144 passed
Verifying OS Kernel Parameter: wmem_default ...PASSED
Verifying OS Kernel Parameter: wmem_max ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 2097152 2097152 1048576 passed
rhel6m2 2097152 2097152 1048576 passed
Verifying OS Kernel Parameter: wmem_max ...PASSED
Verifying OS Kernel Parameter: aio-max-nr ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 3145728 3145728 1048576 passed
rhel6m2 3145728 3145728 1048576 passed
Verifying OS Kernel Parameter: aio-max-nr ...PASSED
Verifying OS Kernel Parameter: panic_on_oops ...
Node Name Current Configured Required Status Comment
---------------- ------------ ------------ ------------ ------------ ------------
rhel6m1 1 undefined 1 passed
rhel6m2 1 undefined 1 passed
Verifying OS Kernel Parameter: panic_on_oops ...PASSED
Verifying Package: binutils-2.20.51.0.2 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 binutils-2.20.51.0.2-5.36.el6 binutils-2.20.51.0.2 passed
rhel6m1 binutils-2.20.51.0.2-5.36.el6 binutils-2.20.51.0.2 passed
Verifying Package: binutils-2.20.51.0.2 ...PASSED
Verifying Package: compat-libcap1-1.10 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 compat-libcap1-1.10-1 compat-libcap1-1.10 passed
rhel6m1 compat-libcap1-1.10-1 compat-libcap1-1.10 passed
Verifying Package: compat-libcap1-1.10 ...PASSED
Verifying Package: compat-libstdc++-33-3.2.3 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 compat-libstdc++-33(x86_64)-3.2.3-69.el6 compat-libstdc++-33(x86_64)-3.2.3 passed
rhel6m1 compat-libstdc++-33(x86_64)-3.2.3-69.el6 compat-libstdc++-33(x86_64)-3.2.3 passed
Verifying Package: compat-libstdc++-33-3.2.3 (x86_64) ...PASSED
Verifying Package: libgcc-4.4.7 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 libgcc(x86_64)-4.4.7-3.el6 libgcc(x86_64)-4.4.7 passed
rhel6m1 libgcc(x86_64)-4.4.7-3.el6 libgcc(x86_64)-4.4.7 passed
Verifying Package: libgcc-4.4.7 (x86_64) ...PASSED
Verifying Package: libstdc++-4.4.7 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 libstdc++(x86_64)-4.4.7-3.el6 libstdc++(x86_64)-4.4.7 passed
rhel6m1 libstdc++(x86_64)-4.4.7-3.el6 libstdc++(x86_64)-4.4.7 passed
Verifying Package: libstdc++-4.4.7 (x86_64) ...PASSED
Verifying Package: libstdc++-devel-4.4.7 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 libstdc++-devel(x86_64)-4.4.7-3.el6 libstdc++-devel(x86_64)-4.4.7 passed
rhel6m1 libstdc++-devel(x86_64)-4.4.7-3.el6 libstdc++-devel(x86_64)-4.4.7 passed
Verifying Package: libstdc++-devel-4.4.7 (x86_64) ...PASSED
Verifying Package: sysstat-9.0.4 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 sysstat-9.0.4-20.el6 sysstat-9.0.4 passed
rhel6m1 sysstat-9.0.4-20.el6 sysstat-9.0.4 passed
Verifying Package: sysstat-9.0.4 ...PASSED
Verifying Package: gcc-4.4.7 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 gcc-4.4.7-3.el6 gcc-4.4.7 passed
rhel6m1 gcc-4.4.7-3.el6 gcc-4.4.7 passed
Verifying Package: gcc-4.4.7 ...PASSED
Verifying Package: gcc-c++-4.4.7 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 gcc-c++-4.4.7-3.el6 gcc-c++-4.4.7 passed
rhel6m1 gcc-c++-4.4.7-3.el6 gcc-c++-4.4.7 passed
Verifying Package: gcc-c++-4.4.7 ...PASSED
Verifying Package: ksh ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 ksh ksh passed
rhel6m1 ksh ksh passed
Verifying Package: ksh ...PASSED
Verifying Package: make-3.81 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 make-3.81-20.el6 make-3.81 passed
rhel6m1 make-3.81-20.el6 make-3.81 passed
Verifying Package: make-3.81 ...PASSED
Verifying Package: glibc-2.12 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 glibc(x86_64)-2.12-1.107.el6 glibc(x86_64)-2.12 passed
rhel6m1 glibc(x86_64)-2.12-1.107.el6 glibc(x86_64)-2.12 passed
Verifying Package: glibc-2.12 (x86_64) ...PASSED
Verifying Package: glibc-devel-2.12 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 glibc-devel(x86_64)-2.12-1.107.el6 glibc-devel(x86_64)-2.12 passed
rhel6m1 glibc-devel(x86_64)-2.12-1.107.el6 glibc-devel(x86_64)-2.12 passed
Verifying Package: glibc-devel-2.12 (x86_64) ...PASSED
Verifying Package: libaio-0.3.107 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 libaio(x86_64)-0.3.107-10.el6 libaio(x86_64)-0.3.107 passed
rhel6m1 libaio(x86_64)-0.3.107-10.el6 libaio(x86_64)-0.3.107 passed
Verifying Package: libaio-0.3.107 (x86_64) ...PASSED
Verifying Package: libaio-devel-0.3.107 (x86_64) ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 libaio-devel(x86_64)-0.3.107-10.el6 libaio-devel(x86_64)-0.3.107 passed
rhel6m1 libaio-devel(x86_64)-0.3.107-10.el6 libaio-devel(x86_64)-0.3.107 passed
Verifying Package: libaio-devel-0.3.107 (x86_64) ...PASSED
Verifying Package: nfs-utils-1.2.3-15 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 nfs-utils-1.2.3-36.el6 nfs-utils-1.2.3-15 passed
rhel6m1 nfs-utils-1.2.3-36.el6 nfs-utils-1.2.3-15 passed
Verifying Package: nfs-utils-1.2.3-15 ...PASSED
Verifying Package: smartmontools-5.43-1 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 smartmontools-5.43-1.el6 smartmontools-5.43-1 passed
rhel6m1 smartmontools-5.43-1.el6 smartmontools-5.43-1 passed
Verifying Package: smartmontools-5.43-1 ...PASSED
Verifying Package: net-tools-1.60-110 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 net-tools-1.60-110.el6_2 net-tools-1.60-110 passed
rhel6m1 net-tools-1.60-110.el6_2 net-tools-1.60-110 passed
Verifying Package: net-tools-1.60-110 ...PASSED
Verifying Port Availability for component "Oracle Notification Service (ONS)" ...
Node Name Port Number Protocol Available Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 6200 TCP yes successful
rhel6m1 6200 TCP yes successful
rhel6m2 6100 TCP yes successful
rhel6m1 6100 TCP yes successful
Verifying Port Availability for component "Oracle Notification Service (ONS)" ...PASSED
Verifying Port Availability for component "Oracle Cluster Synchronization Services (CSSD)" ...
Node Name Port Number Protocol Available Status
---------------- ------------ ------------ ------------ ----------------
rhel6m2 42424 TCP yes successful
rhel6m1 42424 TCP yes successful
Verifying Port Availability for component "Oracle Cluster Synchronization Services (CSSD)" ...PASSED
Verifying Users With Same UID: 0 ...PASSED
Verifying Current Group ID ...PASSED
Verifying Root user consistency ...
Node Name Status
------------------------------------ ------------------------
rhel6m2 passed
rhel6m1 passed
Verifying Root user consistency ...PASSED
Verifying Package: cvuqdisk-1.0.10-1 ...
Node Name Available Required Status
------------ ------------------------ ------------------------ ----------
rhel6m2 cvuqdisk-1.0.10-1 cvuqdisk-1.0.10-1 passed
rhel6m1 cvuqdisk-1.0.10-1 cvuqdisk-1.0.10-1 passed
Verifying Package: cvuqdisk-1.0.10-1 ...PASSED
Verifying Node Connectivity ...
Verifying Hosts File ...
Node Name Status
------------------------------------ ------------------------
rhel6m1 passed
rhel6m2 passed
Verifying Hosts File ...PASSED
Interface information for node "rhel6m2"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU
------ --------------- --------------- --------------- --------------- ----------------- ------
eth0 192.168.0.94 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:7E:61:A9 1500
eth1 192.168.1.88 192.168.1.0 0.0.0.0 192.168.0.100 08:00:27:69:2C:B6 1500
Interface information for node "rhel6m1"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU
------ --------------- --------------- --------------- --------------- ----------------- ------
eth0 192.168.0.93 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:AC:F3:CC 1500
eth1 192.168.1.87 192.168.1.0 0.0.0.0 192.168.0.100 08:00:27:A3:C4:6F 1500
Check: MTU consistency of the subnet "192.168.1.0".
Node Name IP Address Subnet MTU
---------------- ------------ ------------ ------------ ----------------
rhel6m2 eth1 192.168.1.88 192.168.1.0 1500
rhel6m1 eth1 192.168.1.87 192.168.1.0 1500
Check: MTU consistency of the subnet "192.168.0.0".
Node Name IP Address Subnet MTU
---------------- ------------ ------------ ------------ ----------------
rhel6m2 eth0 192.168.0.94 192.168.0.0 1500
rhel6m1 eth0 192.168.0.93 192.168.0.0 1500
Verifying Check that maximum (MTU) size packet goes through subnet ...PASSED
Source Destination Connected?
------------------------------ ------------------------------ ----------------
rhel6m1[eth1:192.168.1.87] rhel6m2[eth1:192.168.1.88] yes
Source Destination Connected?
------------------------------ ------------------------------ ----------------
rhel6m1[eth0:192.168.0.93] rhel6m2[eth0:192.168.0.94] yes
Verifying subnet mask consistency for subnet "192.168.1.0" ...PASSED
Verifying subnet mask consistency for subnet "192.168.0.0" ...PASSED
Verifying Node Connectivity ...PASSED
Verifying Multicast check ...
Checking subnet "192.168.1.0" for multicast communication with multicast group "224.0.0.251"
Verifying Multicast check ...PASSED
Verifying Device Checks for ASM ...Disks "/dev/oracleasm/gimr,/dev/oracleasm/fra1,/dev/oracleasm/data1,/dev/oracleasm/ocr3,/dev/oracleasm/ocr1,/dev/oracleasm/ocr2" are managed by ASM.
Verifying Device Checks for ASM ...PASSED
Verifying I/O scheduler ...
Verifying Package: cvuqdisk-1.0.10-1 ...PASSED
Verifying I/O scheduler ...PASSED
Verifying Network Time Protocol (NTP) ...
Verifying '/etc/ntp.conf' ...
Node Name File exists?
------------------------------------ ------------------------
rhel6m2 no
rhel6m1 no
Verifying '/etc/ntp.conf' ...PASSED
Verifying '/var/run/ntpd.pid' ...
Node Name File exists?
------------------------------------ ------------------------
rhel6m2 no
rhel6m1 no
Verifying '/var/run/ntpd.pid' ...PASSED
Verifying Network Time Protocol (NTP) ...PASSED
Verifying Same core file name pattern ...PASSED
Verifying User Mask ...
Node Name Available Required Comment
------------ ------------------------ ------------------------ ----------
rhel6m2 0022 0022 passed
rhel6m1 0022 0022 passed
Verifying User Mask ...PASSED
Verifying User Not In Group "root": grid ...
Node Name Status Comment
------------ ------------------------ ------------------------
rhel6m2 passed does not exist
rhel6m1 passed does not exist
Verifying User Not In Group "root": grid ...PASSED
Verifying Time zone consistency ...PASSED
Verifying resolv.conf Integrity ...
Verifying (Linux) resolv.conf Integrity ...
Node Name Status
------------------------------------ ------------------------
rhel6m1 passed
rhel6m2 passed
checking response for name "rhel6m2" from each of the name servers specified
in "/etc/resolv.conf"
Node Name Source Comment Status
------------ ------------------------ ------------------------ ----------
rhel6m2 192.168.0.66 IPv4 passed
checking response for name "rhel6m1" from each of the name servers specified
in "/etc/resolv.conf"
Node Name Source Comment Status
------------ ------------------------ ------------------------ ----------
rhel6m1 192.168.0.66 IPv4 passed
Verifying (Linux) resolv.conf Integrity ...PASSED
Verifying resolv.conf Integrity ...PASSED
Verifying DNS/NIS name service ...PASSED
Verifying Domain Sockets ...PASSED
Verifying /boot mount ...PASSED
Verifying File system mount options for path GI_HOME ...PASSED
Verifying Daemon "avahi-daemon" not configured and running ...
Node Name Configured Status
------------ ------------------------ ------------------------
rhel6m2 no passed
rhel6m1 no passed
Node Name Running? Status
------------ ------------------------ ------------------------
rhel6m2 no passed
rhel6m1 no passed
Verifying Daemon "avahi-daemon" not configured and running ...PASSED
Verifying Daemon "proxyt" not configured and running ...
Node Name Configured Status
------------ ------------------------ ------------------------
rhel6m2 no passed
rhel6m1 no passed
Node Name Running? Status
------------ ------------------------ ------------------------
rhel6m2 no passed
rhel6m1 no passed
Verifying Daemon "proxyt" not configured and running ...PASSED
Verifying Grid Infrastructure home path: /opt/app/12.2.0/grid ...
Verifying '/opt/app/12.2.0/grid' ...PASSED
Verifying Grid Infrastructure home path: /opt/app/12.2.0/grid ...PASSED
Verifying User Equivalence ...PASSED
Verifying /dev/shm mounted as temporary file system ...PASSED
Verifying File system mount options for path /var ...PASSED
Verifying zeroconf check ...PASSED
Verifying ASM Filter Driver configuration ...PASSED
Pre-check for cluster services setup was unsuccessful on all the nodes.
Failures were encountered during execution of CVU verification request "stage -pre crsinst".
Verifying Swap Size ...FAILED
rhel6m2: PRVF-7573 : Sufficient swap size is not available on node "rhel6m2"
[Required = 7.6865GB (8059836.0KB) ; Found = 4GB (4194296.0KB)]
rhel6m1: PRVF-7573 : Sufficient swap size is not available on node "rhel6m1"
[Required = 7.6865GB (8059836.0KB) ; Found = 4GB (4194296.0KB)]
CVU operation performed: stage -pre crsinst
Date: May 11, 2017 2:54:23 PM
CVU home: /opt/app/12.2.0/grid/

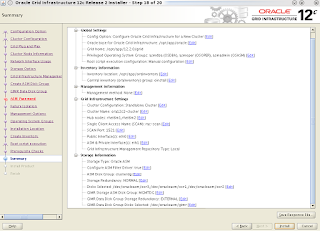

User: grid6. From the GI_HOME directory run gridSetup.sh to begin the installation. Select new cluster configuration option.
2017/05/11 16:26:56 CLSRSC-184: Configuration of ASM failed 2017/05/11 16:27:01 CLSRSC-258: Failed to configure and start ASM Died at /opt/app/12.2.0/grid/crs/install/crsinstall.pm line 2091. The command '/opt/app/12.2.0/grid/perl/bin/perl -I/opt/app/12.2.0/grid/perl/lib -I/opt/app/12.2.0/grid/crs/install /opt/app/12.2.0/grid/crs/install/rootcrs.pl ' execution failedAlert log will show that ASM disk group creation was attempted with default disk path string.
2017-05-11 16:26:24: Invoking "/opt/app/12.2.0/grid/bin/asmca -silent -diskGroupName clusterdg -diskList '/dev/oracleasm/ocr3,/dev/oracleasm/ocr1,/dev/oracleasm/ocr2' -redundancy NORMAL -diskString '/dev/sd*' -configureLocalASM -passwordFileLocation +clusterdg/orapwASM -au_size 4 " as user "grid"If it comes to this it is possible to change the ASM_DISCOVERY_STRING in GI_HOME/crs/install/crsconfig_params to reflect the correct disk path string and run root.sh again. All of this could be avoided by explicitly setting the disk path string.
[root@rhel6m1 ~]# /opt/app/12.2.0/grid/root.sh
Performing root user operation.
The following environment variables are set as:
ORACLE_OWNER= grid
ORACLE_HOME= /opt/app/12.2.0/grid
Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /opt/app/12.2.0/grid/crs/install/crsconfig_params
The log of current session can be found at:
/opt/app/oracle/crsdata/rhel6m1/crsconfig/rootcrs_rhel6m1_2017-05-15_12-11-53AM.log
2017/05/15 12:11:57 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2017/05/15 12:11:57 CLSRSC-4001: Installing Oracle Trace File Analyzer (TFA) Collector.
2017/05/15 12:12:29 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2017/05/15 12:12:29 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2017/05/15 12:12:38 CLSRSC-363: User ignored prerequisites during installation
2017/05/15 12:12:38 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2017/05/15 12:12:41 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2017/05/15 12:12:44 CLSRSC-594: Executing installation step 5 of 19: 'SaveParamFile'.
2017/05/15 12:12:56 CLSRSC-594: Executing installation step 6 of 19: 'SetupOSD'.
2017/05/15 12:12:59 CLSRSC-594: Executing installation step 7 of 19: 'CheckCRSConfig'.
2017/05/15 12:12:59 CLSRSC-594: Executing installation step 8 of 19: 'SetupLocalGPNP'.
2017/05/15 12:13:37 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2017/05/15 12:13:53 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2017/05/15 12:13:53 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2017/05/15 12:14:04 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2017/05/15 12:14:19 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.conf'
2017/05/15 12:14:49 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2017/05/15 12:14:59 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'rhel6m1'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'rhel6m1' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
2017/05/15 12:15:57 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2017/05/15 12:16:07 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'rhel6m1'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'rhel6m1' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
CRS-2672: Attempting to start 'ora.evmd' on 'rhel6m1'
CRS-2672: Attempting to start 'ora.mdnsd' on 'rhel6m1'
CRS-2676: Start of 'ora.evmd' on 'rhel6m1' succeeded
CRS-2676: Start of 'ora.mdnsd' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'rhel6m1'
CRS-2676: Start of 'ora.gpnpd' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'rhel6m1'
CRS-2672: Attempting to start 'ora.gipcd' on 'rhel6m1'
CRS-2676: Start of 'ora.cssdmonitor' on 'rhel6m1' succeeded
CRS-2676: Start of 'ora.gipcd' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'rhel6m1'
CRS-2672: Attempting to start 'ora.diskmon' on 'rhel6m1'
CRS-2676: Start of 'ora.diskmon' on 'rhel6m1' succeeded
CRS-2676: Start of 'ora.cssd' on 'rhel6m1' succeeded
Disk groups created successfully. Check /opt/app/oracle/cfgtoollogs/asmca/asmca-170515PM121648.log for details.
2017/05/15 12:17:45 CLSRSC-482: Running command: '/opt/app/12.2.0/grid/bin/ocrconfig -upgrade grid oinstall'
CRS-2672: Attempting to start 'ora.crf' on 'rhel6m1'
CRS-2672: Attempting to start 'ora.storage' on 'rhel6m1'
CRS-2676: Start of 'ora.storage' on 'rhel6m1' succeeded
CRS-2676: Start of 'ora.crf' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.crsd' on 'rhel6m1'
CRS-2676: Start of 'ora.crsd' on 'rhel6m1' succeeded
CRS-4256: Updating the profile
Successful addition of voting disk 5dcf6fe02fa14f27bf3597660cd83e26.
Successful addition of voting disk 4cabbda7d3694f32bff3745c4ab89112.
Successful addition of voting disk 3fb1474faee54fa2bfac45159c621cc5.
Successfully replaced voting disk group with +clusterdg.
CRS-4256: Updating the profile
CRS-4266: Voting file(s) successfully replaced
## STATE File Universal Id File Name Disk group
-- ----- ----------------- --------- ---------
1. ONLINE 5dcf6fe02fa14f27bf3597660cd83e26 (/dev/oracleasm/ocr3) [CLUSTERDG]
2. ONLINE 4cabbda7d3694f32bff3745c4ab89112 (/dev/oracleasm/ocr1) [CLUSTERDG]
3. ONLINE 3fb1474faee54fa2bfac45159c621cc5 (/dev/oracleasm/ocr2) [CLUSTERDG]
Located 3 voting disk(s).
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'rhel6m1'
CRS-2673: Attempting to stop 'ora.crsd' on 'rhel6m1'
CRS-2677: Stop of 'ora.crsd' on 'rhel6m1' succeeded
CRS-2673: Attempting to stop 'ora.storage' on 'rhel6m1'
CRS-2673: Attempting to stop 'ora.crf' on 'rhel6m1'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'rhel6m1'
CRS-2673: Attempting to stop 'ora.gpnpd' on 'rhel6m1'
CRS-2673: Attempting to stop 'ora.mdnsd' on 'rhel6m1'
CRS-2677: Stop of 'ora.drivers.acfs' on 'rhel6m1' succeeded
CRS-2677: Stop of 'ora.crf' on 'rhel6m1' succeeded
CRS-2677: Stop of 'ora.gpnpd' on 'rhel6m1' succeeded
CRS-2677: Stop of 'ora.storage' on 'rhel6m1' succeeded
CRS-2673: Attempting to stop 'ora.asm' on 'rhel6m1'
CRS-2677: Stop of 'ora.mdnsd' on 'rhel6m1' succeeded
CRS-2677: Stop of 'ora.asm' on 'rhel6m1' succeeded
CRS-2673: Attempting to stop 'ora.cluster_interconnect.haip' on 'rhel6m1'
CRS-2677: Stop of 'ora.cluster_interconnect.haip' on 'rhel6m1' succeeded
CRS-2673: Attempting to stop 'ora.ctssd' on 'rhel6m1'
CRS-2673: Attempting to stop 'ora.evmd' on 'rhel6m1'
CRS-2677: Stop of 'ora.evmd' on 'rhel6m1' succeeded
CRS-2677: Stop of 'ora.ctssd' on 'rhel6m1' succeeded
CRS-2673: Attempting to stop 'ora.cssd' on 'rhel6m1'
CRS-2677: Stop of 'ora.cssd' on 'rhel6m1' succeeded
CRS-2673: Attempting to stop 'ora.gipcd' on 'rhel6m1'
CRS-2677: Stop of 'ora.gipcd' on 'rhel6m1' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'rhel6m1' has completed
CRS-4133: Oracle High Availability Services has been stopped.
2017/05/15 12:19:50 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
CRS-4123: Starting Oracle High Availability Services-managed resources
CRS-2672: Attempting to start 'ora.evmd' on 'rhel6m1'
CRS-2672: Attempting to start 'ora.mdnsd' on 'rhel6m1'
CRS-2676: Start of 'ora.mdnsd' on 'rhel6m1' succeeded
CRS-2676: Start of 'ora.evmd' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'rhel6m1'
CRS-2676: Start of 'ora.gpnpd' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.gipcd' on 'rhel6m1'
CRS-2676: Start of 'ora.gipcd' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'rhel6m1'
CRS-2676: Start of 'ora.cssdmonitor' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'rhel6m1'
CRS-2672: Attempting to start 'ora.diskmon' on 'rhel6m1'
CRS-2676: Start of 'ora.diskmon' on 'rhel6m1' succeeded
CRS-2676: Start of 'ora.cssd' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.cluster_interconnect.haip' on 'rhel6m1'
CRS-2672: Attempting to start 'ora.ctssd' on 'rhel6m1'
CRS-2676: Start of 'ora.ctssd' on 'rhel6m1' succeeded
CRS-2676: Start of 'ora.cluster_interconnect.haip' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'rhel6m1'
CRS-2676: Start of 'ora.asm' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.storage' on 'rhel6m1'
CRS-2676: Start of 'ora.storage' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.crf' on 'rhel6m1'
CRS-2676: Start of 'ora.crf' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.crsd' on 'rhel6m1'
CRS-2676: Start of 'ora.crsd' on 'rhel6m1' succeeded
CRS-6023: Starting Oracle Cluster Ready Services-managed resources
CRS-6017: Processing resource auto-start for servers: rhel6m1
CRS-6016: Resource auto-start has completed for server rhel6m1
CRS-6024: Completed start of Oracle Cluster Ready Services-managed resources
CRS-4123: Oracle High Availability Services has been started.
2017/05/15 12:22:35 CLSRSC-343: Successfully started Oracle Clusterware stack
2017/05/15 12:22:35 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
CRS-2672: Attempting to start 'ora.ASMNET1LSNR_ASM.lsnr' on 'rhel6m1'
CRS-2676: Start of 'ora.ASMNET1LSNR_ASM.lsnr' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'rhel6m1'
CRS-2676: Start of 'ora.asm' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.CLUSTERDG.dg' on 'rhel6m1'
CRS-2676: Start of 'ora.CLUSTERDG.dg' on 'rhel6m1' succeeded
2017/05/15 12:25:10 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2017/05/15 12:26:08 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeededroot.sh output for the second node.[root@rhel6m2 ~]# /opt/app/12.2.0/grid/root.sh
Performing root user operation.
The following environment variables are set as:
ORACLE_OWNER= grid
ORACLE_HOME= /opt/app/12.2.0/grid
Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /opt/app/12.2.0/grid/crs/install/crsconfig_params
The log of current session can be found at:
/opt/app/oracle/crsdata/rhel6m2/crsconfig/rootcrs_rhel6m2_2017-05-15_12-27-18AM.log
2017/05/15 12:27:22 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2017/05/15 12:27:22 CLSRSC-4001: Installing Oracle Trace File Analyzer (TFA) Collector.
2017/05/15 12:27:54 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2017/05/15 12:27:54 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2017/05/15 12:27:55 CLSRSC-363: User ignored prerequisites during installation
2017/05/15 12:27:55 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2017/05/15 12:27:56 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2017/05/15 12:27:56 CLSRSC-594: Executing installation step 5 of 19: 'SaveParamFile'.
2017/05/15 12:28:01 CLSRSC-594: Executing installation step 6 of 19: 'SetupOSD'.
2017/05/15 12:28:04 CLSRSC-594: Executing installation step 7 of 19: 'CheckCRSConfig'.
2017/05/15 12:28:04 CLSRSC-594: Executing installation step 8 of 19: 'SetupLocalGPNP'.
2017/05/15 12:28:07 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2017/05/15 12:28:09 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2017/05/15 12:28:09 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2017/05/15 12:28:12 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2017/05/15 12:28:27 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.conf'
2017/05/15 12:28:47 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2017/05/15 12:28:48 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'rhel6m2'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'rhel6m2' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
2017/05/15 12:29:34 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2017/05/15 12:29:36 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'rhel6m2'
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'rhel6m2' has completed
CRS-4133: Oracle High Availability Services has been stopped.
CRS-4123: Oracle High Availability Services has been started.
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'rhel6m2'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'rhel6m2'
CRS-2677: Stop of 'ora.drivers.acfs' on 'rhel6m2' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'rhel6m2' has completed
CRS-4133: Oracle High Availability Services has been stopped.
2017/05/15 12:29:51 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
CRS-4123: Starting Oracle High Availability Services-managed resources
CRS-2672: Attempting to start 'ora.mdnsd' on 'rhel6m2'
CRS-2672: Attempting to start 'ora.evmd' on 'rhel6m2'
CRS-2676: Start of 'ora.mdnsd' on 'rhel6m2' succeeded
CRS-2676: Start of 'ora.evmd' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'rhel6m2'
CRS-2676: Start of 'ora.gpnpd' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.gipcd' on 'rhel6m2'
CRS-2676: Start of 'ora.gipcd' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'rhel6m2'
CRS-2676: Start of 'ora.cssdmonitor' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'rhel6m2'
CRS-2672: Attempting to start 'ora.diskmon' on 'rhel6m2'
CRS-2676: Start of 'ora.diskmon' on 'rhel6m2' succeeded
CRS-2676: Start of 'ora.cssd' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.cluster_interconnect.haip' on 'rhel6m2'
CRS-2672: Attempting to start 'ora.ctssd' on 'rhel6m2'
CRS-2676: Start of 'ora.ctssd' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.crf' on 'rhel6m2'
CRS-2676: Start of 'ora.crf' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.crsd' on 'rhel6m2'
CRS-2676: Start of 'ora.crsd' on 'rhel6m2' succeeded
CRS-2676: Start of 'ora.cluster_interconnect.haip' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'rhel6m2'
CRS-2676: Start of 'ora.asm' on 'rhel6m2' succeeded
CRS-6017: Processing resource auto-start for servers: rhel6m2
CRS-2673: Attempting to stop 'ora.LISTENER_SCAN1.lsnr' on 'rhel6m1'
CRS-2672: Attempting to start 'ora.net1.network' on 'rhel6m2'
CRS-2672: Attempting to start 'ora.ASMNET1LSNR_ASM.lsnr' on 'rhel6m2'
CRS-2677: Stop of 'ora.LISTENER_SCAN1.lsnr' on 'rhel6m1' succeeded
CRS-2676: Start of 'ora.net1.network' on 'rhel6m2' succeeded
CRS-2673: Attempting to stop 'ora.scan1.vip' on 'rhel6m1'
CRS-2672: Attempting to start 'ora.ons' on 'rhel6m2'
CRS-2677: Stop of 'ora.scan1.vip' on 'rhel6m1' succeeded
CRS-2672: Attempting to start 'ora.scan1.vip' on 'rhel6m2'
CRS-2676: Start of 'ora.scan1.vip' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.LISTENER_SCAN1.lsnr' on 'rhel6m2'
CRS-2676: Start of 'ora.ASMNET1LSNR_ASM.lsnr' on 'rhel6m2' succeeded
CRS-2672: Attempting to start 'ora.asm' on 'rhel6m2'
CRS-2676: Start of 'ora.ons' on 'rhel6m2' succeeded
CRS-2676: Start of 'ora.LISTENER_SCAN1.lsnr' on 'rhel6m2' succeeded
CRS-2676: Start of 'ora.asm' on 'rhel6m2' succeeded
CRS-6016: Resource auto-start has completed for server rhel6m2
CRS-6024: Completed start of Oracle Cluster Ready Services-managed resources
CRS-4123: Oracle High Availability Services has been started.
2017/05/15 12:32:14 CLSRSC-343: Successfully started Oracle Clusterware stack
2017/05/15 12:32:14 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2017/05/15 12:32:36 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2017/05/15 12:32:49 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeededAt the end of the root.sh run the cluster version and mode could quried. [root@rhel6m1 bin]# crsctl query crs activeversion Oracle Clusterware active version on the cluster is [12.2.0.1.0] [root@rhel6m1 bin]# crsctl get cluster mode status Cluster is running in "flex" mode [root@rhel6m1 bin]# crsctl get node role config -all Node 'rhel6m1' configured role is 'hub' Node 'rhel6m2' configured role is 'hub' [root@rhel6m1 bin]# srvctl config gns PRKF-1110 : Neither GNS server nor GNS client is configured on this cluster ASMCMD> showclustermode ASM cluster : Flex mode enabledAs seen from the output above the cluster mode is flex mode. However unlike in 12.1 flex cluster, GNS was not setup during the installation. It was confirmed through a SR that setting up GNS for standalone cluster is not required even though cluster mode appear as flex.
Once the root scripts are run click OK on the configuration dialogue box to complete the creation of GIMR and other configuration assistants. At the end this clusterware installation would be completed.
As said in the beginning the GIMR will be used for storing OCR backup.
ocrconfig -showbackuploc The Oracle Cluster Registry backup location is [+MGMTDG] ocrconfig -showbackup auto rhel6m1 2017/05/17 06:34:03 +MGMTDG:/ora12c2-cluster/OCRBACKUP/backup00.ocr.287.944202839 0 rhel6m1 2017/05/17 02:33:57 +MGMTDG:/ora12c2-cluster/OCRBACKUP/backup01.ocr.285.944188433 0 rhel6m1 2017/05/16 22:33:52 +MGMTDG:/ora12c2-cluster/OCRBACKUP/backup02.ocr.284.944174029 0 rhel6m1 2017/05/16 18:33:46 +MGMTDG:/ora12c2-cluster/OCRBACKUP/day.ocr.282.944159627 0 rhel6m1 2017/05/16 18:33:46 +MGMTDG:/ora12c2-cluster/OCRBACKUP/week.ocr.283.944159627 0 # ocrconfig -manualbackup rhel6m1 2017/05/25 15:39:44 +MGMTDG:/ora12c2-cluster/OCRBACKUP/backup_20170525_153944.ocr.287.944926785 0However, unlike in 12.1 where it gave the option of both file system and ASM for OCR backup, it seems that in 12.2 OCR backup location must be an ASM disk group.
ocrconfig -help
Name:
ocrconfig - Configuration tool for Oracle Cluster/Local Registry.
Synopsis:
ocrconfig [option]
option:
-backuploc +<diskgroupname> - Configure OCR backup locationTrying to set to a file system location will fail as shown below# ocrconfig -backuploc /opt/app/12.2.0/grid/cdata/ora12c2-cluster PROT-42: The specified backup location '/opt/app/12.2.0/grid/cdata/ora12c2-cluster' is not an ASM disk group.At the time of writing Oracle documentation for 12.2 still state that file system is an option for OCR backups. Furthermore the clusterware admin guide states "If the OCR backup file is located in an Oracle ASM disk group, then ensure that the disk group exists and is mounted." Depending on the failure it may not be able to mount the ASM disk containing OCR backups. OCR backups could be copied out of ASM disk group using ASMCMD
asmcmd cp +MGMTDG/ora12c2-cluster/OCRBACKUP/backup_20170515_130825.ocr.281.944053705 /home/grid/ copying +MGMTDG/ora12c2-cluster/OCRBACKUP/backup_20170515_130825.ocr.281.944053705 -> /home/grid//backup_20170515_130825.ocr.281.944053705ASM configuration list ASM instance count as 3 even though this is a 2 node cluster. This is related to flex cluster configuration where default ASM instance count is 3 even when actual node count is 2.
srvctl config asm -a ASM home:The ASMCA interface has also been changed in 12.2. Create the other disk group needed for data and FRA.Password file: +CLUSTERDG/orapwASM Backup of Password file: ASM listener: LISTENER ASM is enabled. ASM is individually enabled on nodes: ASM is individually disabled on nodes: ASM instance count: 3 Cluster ASM listener: ASMNET1LSNR_ASM
Using ASM Filter Driver During Installation
In order to use AFD to mange the disk sued by ASM carry out the following before the installation (before running gridSetup.sh). At this stage is assumed that grid software is extracted to grid home location. set ORACLE_HOME AND ORACLE_BASE variables as below. Oracle base is set to a temp location so that files generated during ASM disk labelling doesn't interfere with actual installation.
# export ORACLE_HOME=/opt/app/12.2.0/grid # export ORACLE_BASE=/tmpRun the disk labelling command from the $GI_HOME/bin directory.
# ./asmcmd afd_label DATA1 /dev/oracleasm/data1 --init # ./asmcmd afd_label FRA1 /dev/oracleasm/fra1 --init # ./asmcmd afd_label OCR1 /dev/oracleasm/ocr1 --init # ./asmcmd afd_label OCR2 /dev/oracleasm/ocr2 --init # ./asmcmd afd_label OCR3 /dev/oracleasm/ocr3 --init # ./asmcmd afd_label GIMR /dev/oracleasm/gimr --initVerify the disks are labelled.
# ./asmcmd afd_lslbl '/dev/oracleasm/*' -------------------------------------------------------------------------------- Label Duplicate Path ================================================================================ DATA1 /dev/oracleasm/data1 FRA1 /dev/oracleasm/fra1 GIMR /dev/oracleasm/gimr OCR1 /dev/oracleasm/ocr1 OCR2 /dev/oracleasm/ocr2 OCR3 /dev/oracleasm/ocr3Afterwards run the gridSetup.sh as before. Give the ASM disk path string as before when it is time to specify the disks for ASM. The listed disks will have the status "provisioned".
Successfully replaced voting disk group with +CLUSTERDG. CRS-4256: Updating the profile CRS-4266: Voting file(s) successfully replaced ## STATE File Universal Id File Name Disk group -- ----- ----------------- --------- --------- 1. ONLINE 5525126aef6f4fb4bf9b383115bade73 (AFD:OCR3) [CLUSTERDG] 2. ONLINE a5330a1d40594f31bfcc9ee98c6b0034 (AFD:OCR2) [CLUSTERDG] 3. ONLINE ad0588fa57fa4f13bfd0800d4e52ea5d (AFD:OCR1) [CLUSTERDG] Located 3 voting disk(s).At the end of the installation process asmcmd will show following string as discovery string
asmcmd afd_dsget AFD discovery string: /dev/oracleasm/*while querying same from within an ASM instance will show both above disk string and AFD:*
SQL> show parameter string NAME TYPE VALUE ------------------------------------ ----------- ------------------------ asm_diskstring string /dev/oracleasm/*, AFD:*v$asm_disk will have both AFD and /dev/oracleasm/* paths
SQL> select name,path from v$asm_disk order by 2;
NAME PATH
------------------------------ ------------------------------
/dev/oracleasm/data1
/dev/oracleasm/fra1
/dev/oracleasm/gimr
/dev/oracleasm/ocr1
/dev/oracleasm/ocr2
/dev/oracleasm/ocr3
AFD:DATA1
AFD:FRA1
GIMR AFD:GIMR
OCR1 AFD:OCR1
OCR2 AFD:OCR2
OCR3 AFD:OCR3
However, when ASMCA is run to create additional diskgroups, the disk paths are shown as AFD paths.
Finally run the post crsisnt to verify cluster status.
$ cluvfy stage -post crsinst -n rhel6m1,rhel6m2 -verbose
Verifying Node Connectivity ...
Verifying Hosts File ...
Node Name Status
------------------------------------ ------------------------
rhel6m1 passed
rhel6m2 passed
Verifying Hosts File ...PASSED
Interface information for node "rhel6m2"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU
------ --------------- --------------- --------------- --------------- ----------------- ------
eth0 192.168.0.94 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:7E:61:A9 1500
eth0 192.168.0.98 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:7E:61:A9 1500
eth0 192.168.0.135 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:7E:61:A9 1500
eth0 192.168.0.145 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:7E:61:A9 1500
eth1 192.168.1.88 192.168.1.0 0.0.0.0 192.168.0.100 08:00:27:69:2C:B6 1500
Interface information for node "rhel6m1"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU
------ --------------- --------------- --------------- --------------- ----------------- ------
eth0 192.168.0.93 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:AC:F3:CC 1500
eth0 192.168.0.97 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:AC:F3:CC 1500
eth0 192.168.0.125 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:AC:F3:CC 1500
eth1 192.168.1.87 192.168.1.0 0.0.0.0 192.168.0.100 08:00:27:A3:C4:6F 1500
Check: MTU consistency on the private interfaces of subnet "192.168.1.0"
Node Name IP Address Subnet MTU
---------------- ------------ ------------ ------------ ----------------
rhel6m2 eth1 192.168.1.88 192.168.1.0 1500
rhel6m1 eth1 192.168.1.87 192.168.1.0 1500
Check: MTU consistency of the subnet "192.168.0.0".
Node Name IP Address Subnet MTU
---------------- ------------ ------------ ------------ ----------------
rhel6m2 eth0 192.168.0.94 192.168.0.0 1500
rhel6m2 eth0 192.168.0.98 192.168.0.0 1500
rhel6m2 eth0 192.168.0.135 192.168.0.0 1500
rhel6m2 eth0 192.168.0.145 192.168.0.0 1500
rhel6m1 eth0 192.168.0.93 192.168.0.0 1500
rhel6m1 eth0 192.168.0.97 192.168.0.0 1500
rhel6m1 eth0 192.168.0.125 192.168.0.0 1500
Source Destination Connected?
------------------------------ ------------------------------ ----------------
rhel6m1[eth1:192.168.1.87] rhel6m2[eth1:192.168.1.88] yes
Source Destination Connected?
------------------------------ ------------------------------ ----------------
rhel6m1[eth0:192.168.0.93] rhel6m2[eth0:192.168.0.98] yes
rhel6m1[eth0:192.168.0.93] rhel6m2[eth0:192.168.0.135] yes
rhel6m1[eth0:192.168.0.93] rhel6m2[eth0:192.168.0.145] yes
rhel6m1[eth0:192.168.0.93] rhel6m2[eth0:192.168.0.94] yes
rhel6m1[eth0:192.168.0.93] rhel6m1[eth0:192.168.0.97] yes
rhel6m1[eth0:192.168.0.93] rhel6m1[eth0:192.168.0.125] yes
rhel6m2[eth0:192.168.0.98] rhel6m2[eth0:192.168.0.135] yes
rhel6m2[eth0:192.168.0.98] rhel6m2[eth0:192.168.0.145] yes
rhel6m2[eth0:192.168.0.98] rhel6m2[eth0:192.168.0.94] yes
rhel6m2[eth0:192.168.0.98] rhel6m1[eth0:192.168.0.97] yes
rhel6m2[eth0:192.168.0.98] rhel6m1[eth0:192.168.0.125] yes
rhel6m2[eth0:192.168.0.135] rhel6m2[eth0:192.168.0.145] yes
rhel6m2[eth0:192.168.0.135] rhel6m2[eth0:192.168.0.94] yes
rhel6m2[eth0:192.168.0.135] rhel6m1[eth0:192.168.0.97] yes
rhel6m2[eth0:192.168.0.135] rhel6m1[eth0:192.168.0.125] yes
rhel6m2[eth0:192.168.0.145] rhel6m2[eth0:192.168.0.94] yes
rhel6m2[eth0:192.168.0.145] rhel6m1[eth0:192.168.0.97] yes
rhel6m2[eth0:192.168.0.145] rhel6m1[eth0:192.168.0.125] yes
rhel6m2[eth0:192.168.0.94] rhel6m1[eth0:192.168.0.97] yes
rhel6m2[eth0:192.168.0.94] rhel6m1[eth0:192.168.0.125] yes
rhel6m1[eth0:192.168.0.97] rhel6m1[eth0:192.168.0.125] yes
Verifying Check that maximum (MTU) size packet goes through subnet ...PASSED
Verifying subnet mask consistency for subnet "192.168.1.0" ...PASSED
Verifying subnet mask consistency for subnet "192.168.0.0" ...PASSED
Verifying Node Connectivity ...PASSED
Verifying Multicast check ...
Checking subnet "192.168.1.0" for multicast communication with multicast group "224.0.0.251"
Verifying Multicast check ...PASSED
Verifying ASM filter driver configuration consistency ...PASSED
Verifying Time zone consistency ...PASSED
Verifying Cluster Manager Integrity ...
Node Name Status
------------------------------------ ------------------------
rhel6m1 running
rhel6m2 running
Verifying Cluster Manager Integrity ...PASSED
Verifying User Mask ...
Node Name Available Required Comment
------------ ------------------------ ------------------------ ----------
rhel6m2 0022 0022 passed
rhel6m1 0022 0022 passed
Verifying User Mask ...PASSED
Verifying Cluster Integrity ...
Node Name
------------------------------------
rhel6m1
rhel6m2
Verifying Cluster Integrity ...PASSED
Verifying OCR Integrity ...PASSED
Verifying CRS Integrity ...
Verifying Clusterware Version Consistency ...PASSED
Verifying CRS Integrity ...PASSED
Verifying Node Application Existence ...
Checking existence of VIP node application (required)
Node Name Required Running? Comment
------------ ------------------------ ------------------------ ----------
rhel6m2 yes yes passed
rhel6m1 yes yes passed
Checking existence of NETWORK node application (required)
Node Name Required Running? Comment
------------ ------------------------ ------------------------ ----------
rhel6m2 yes yes passed
rhel6m1 yes yes passed
Checking existence of ONS node application (optional)
Node Name Required Running? Comment
------------ ------------------------ ------------------------ ----------
rhel6m2 no yes passed
rhel6m1 no yes passed
Verifying Node Application Existence ...PASSED
Verifying Single Client Access Name (SCAN) ...
SCAN Name Node Running? ListenerName Port Running?
---------------- ------------ ------------ ------------ ------------ ------------
rac-scan rhel6m1 true LISTENER_SCAN1 1521 true
rac-scan rhel6m2 true LISTENER_SCAN2 1521 true
rac-scan rhel6m2 true LISTENER_SCAN3 1521 true
Checking TCP connectivity to SCAN listeners...
Node ListenerName TCP connectivity?
------------ ------------------------ ------------------------
rhel6m2 LISTENER_SCAN1 yes
rhel6m2 LISTENER_SCAN2 yes
rhel6m2 LISTENER_SCAN3 yes
Verifying DNS/NIS name service 'rac-scan' ...
Verifying Name Service Switch Configuration File Integrity ...PASSED
SCAN Name IP Address Status Comment
------------ ------------------------ ------------------------ ----------
rac-scan 192.168.0.145 passed
rac-scan 192.168.0.125 passed
rac-scan 192.168.0.135 passed
Verifying DNS/NIS name service 'rac-scan' ...PASSED
Verifying Single Client Access Name (SCAN) ...PASSED
Verifying OLR Integrity ...PASSED
Verifying Voting Disk ...PASSED
Verifying ASM Integrity ...
Verifying Node Connectivity ...
Verifying Hosts File ...
Node Name Status
------------------------------------ ------------------------
rhel6m2 passed
rhel6m1 passed
Verifying Hosts File ...PASSED
Interface information for node "rhel6m2"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU
------ --------------- --------------- --------------- --------------- ----------------- ------
eth0 192.168.0.94 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:7E:61:A9 1500
eth0 192.168.0.98 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:7E:61:A9 1500
eth0 192.168.0.135 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:7E:61:A9 1500
eth0 192.168.0.145 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:7E:61:A9 1500
eth1 192.168.1.88 192.168.1.0 0.0.0.0 192.168.0.100 08:00:27:69:2C:B6 1500
Interface information for node "rhel6m1"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU
------ --------------- --------------- --------------- --------------- ----------------- ------
eth0 192.168.0.93 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:AC:F3:CC 1500
eth0 192.168.0.97 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:AC:F3:CC 1500
eth0 192.168.0.125 192.168.0.0 0.0.0.0 192.168.0.100 08:00:27:AC:F3:CC 1500
eth1 192.168.1.87 192.168.1.0 0.0.0.0 192.168.0.100 08:00:27:A3:C4:6F 1500
Check: MTU consistency on the private interfaces of subnet "192.168.1.0"
Node Name IP Address Subnet MTU
---------------- ------------ ------------ ------------ ----------------
rhel6m2 eth1 192.168.1.88 192.168.1.0 1500
rhel6m1 eth1 192.168.1.87 192.168.1.0 1500
Check: MTU consistency of the subnet "192.168.0.0".
Node Name IP Address Subnet MTU
---------------- ------------ ------------ ------------ ----------------
rhel6m2 eth0 192.168.0.94 192.168.0.0 1500
rhel6m2 eth0 192.168.0.98 192.168.0.0 1500
rhel6m2 eth0 192.168.0.135 192.168.0.0 1500
rhel6m2 eth0 192.168.0.145 192.168.0.0 1500
rhel6m1 eth0 192.168.0.93 192.168.0.0 1500
rhel6m1 eth0 192.168.0.97 192.168.0.0 1500
rhel6m1 eth0 192.168.0.125 192.168.0.0 1500
Source Destination Connected?
------------------------------ ------------------------------ ----------------
rhel6m1[eth1:192.168.1.87] rhel6m2[eth1:192.168.1.88] yes
Source Destination Connected?
------------------------------ ------------------------------ ----------------
rhel6m1[eth0:192.168.0.93] rhel6m2[eth0:192.168.0.98] yes
rhel6m1[eth0:192.168.0.93] rhel6m2[eth0:192.168.0.135] yes
rhel6m1[eth0:192.168.0.93] rhel6m2[eth0:192.168.0.145] yes
rhel6m1[eth0:192.168.0.93] rhel6m2[eth0:192.168.0.94] yes
rhel6m1[eth0:192.168.0.93] rhel6m1[eth0:192.168.0.97] yes
rhel6m1[eth0:192.168.0.93] rhel6m1[eth0:192.168.0.125] yes
rhel6m2[eth0:192.168.0.98] rhel6m2[eth0:192.168.0.135] yes
rhel6m2[eth0:192.168.0.98] rhel6m2[eth0:192.168.0.145] yes
rhel6m2[eth0:192.168.0.98] rhel6m2[eth0:192.168.0.94] yes
rhel6m2[eth0:192.168.0.98] rhel6m1[eth0:192.168.0.97] yes
rhel6m2[eth0:192.168.0.98] rhel6m1[eth0:192.168.0.125] yes
rhel6m2[eth0:192.168.0.135] rhel6m2[eth0:192.168.0.145] yes
rhel6m2[eth0:192.168.0.135] rhel6m2[eth0:192.168.0.94] yes
rhel6m2[eth0:192.168.0.135] rhel6m1[eth0:192.168.0.97] yes
rhel6m2[eth0:192.168.0.135] rhel6m1[eth0:192.168.0.125] yes
rhel6m2[eth0:192.168.0.145] rhel6m2[eth0:192.168.0.94] yes
rhel6m2[eth0:192.168.0.145] rhel6m1[eth0:192.168.0.97] yes
rhel6m2[eth0:192.168.0.145] rhel6m1[eth0:192.168.0.125] yes
rhel6m2[eth0:192.168.0.94] rhel6m1[eth0:192.168.0.97] yes
rhel6m2[eth0:192.168.0.94] rhel6m1[eth0:192.168.0.125] yes
rhel6m1[eth0:192.168.0.97] rhel6m1[eth0:192.168.0.125] yes
Verifying Check that maximum (MTU) size packet goes through subnet ...PASSED
Verifying subnet mask consistency for subnet "192.168.1.0" ...PASSED
Verifying subnet mask consistency for subnet "192.168.0.0" ...PASSED
Verifying Node Connectivity ...PASSED
Verifying ASM Integrity ...PASSED
Verifying Device Checks for ASM ...
Verifying Access Control List check ...
Checking consistency of device owner across all nodes...
Consistency check of device owner for "/dev/oracleasm/gimr" PASSED
Consistency check of device owner for "/dev/oracleasm/fra1" PASSED
Consistency check of device owner for "/dev/oracleasm/data1" PASSED
Consistency check of device owner for "/dev/oracleasm/ocr3" PASSED
Consistency check of device owner for "/dev/oracleasm/ocr1" PASSED
Consistency check of device owner for "/dev/oracleasm/ocr2" PASSED
Checking consistency of device group across all nodes...
Consistency check of device group for "/dev/oracleasm/gimr" PASSED
Consistency check of device group for "/dev/oracleasm/fra1" PASSED
Consistency check of device group for "/dev/oracleasm/data1" PASSED
Consistency check of device group for "/dev/oracleasm/ocr3" PASSED
Consistency check of device group for "/dev/oracleasm/ocr1" PASSED
Consistency check of device group for "/dev/oracleasm/ocr2" PASSED
Checking consistency of device permissions across all nodes...
Consistency check of device permissions for "/dev/oracleasm/gimr" PASSED
Consistency check of device permissions for "/dev/oracleasm/fra1" PASSED
Consistency check of device permissions for "/dev/oracleasm/data1" PASSED
Consistency check of device permissions for "/dev/oracleasm/ocr3" PASSED
Consistency check of device permissions for "/dev/oracleasm/ocr1" PASSED
Consistency check of device permissions for "/dev/oracleasm/ocr2" PASSED
Verifying Access Control List check ...PASSED
Verifying Device Checks for ASM ...PASSED
Verifying ASM disk group free space ...PASSED
Verifying I/O scheduler ...
Verifying Package: cvuqdisk-1.0.10-1 ...PASSED
Verifying I/O scheduler ...PASSED
Verifying User Not In Group "root": grid ...
Node Name Status Comment
------------ ------------------------ ------------------------
rhel6m2 passed does not exist
rhel6m1 passed does not exist
Verifying User Not In Group "root": grid ...PASSED
Verifying Clock Synchronization ...
Node Name Status
------------------------------------ ------------------------
rhel6m1 passed
rhel6m2 passed
Node Name State
------------------------------------ ------------------------
rhel6m2 Active
rhel6m1 Active
Node Name Time Offset Status
------------ ------------------------ ------------------------
rhel6m2 0.0 passed
rhel6m1 0.0 passed
Verifying Clock Synchronization ...PASSED
Verifying VIP Subnet configuration check ...PASSED
Verifying Network configuration consistency checks ...PASSED
Verifying File system mount options for path GI_HOME ...PASSED
Post-check for cluster services setup was successful.
CVU operation performed: stage -post crsinst
Date: May 15, 2017 1:18:38 PM
CVU home: /opt/app/12.2.0/grid/
User: gridFinally make sure that $ORACLE_BASE/audit and $ORACLE_BASE/admin folders are writeable for both grid and oracle users on all the nodes.The next step is to install the database software and create the database.
Related Posts
Installing 12c (12.1.0.2) Flex Cluster on RHEL 6 with Role Separation
Installing 12c (12.1.0.1) RAC on RHEL 6 with Role Separation - Clusterware
Installing 11gR2 (11.2.0.3) GI with Role Separation on RHEL 6
Installing 11gR2 (11.2.0.3) GI with Role Separation on OEL 6
Installing 11gR2 Standalone Server with ASM and Role Separation on RHEL 6
11gR2 Standalone Data Guard (with ASM and Role Separation)
